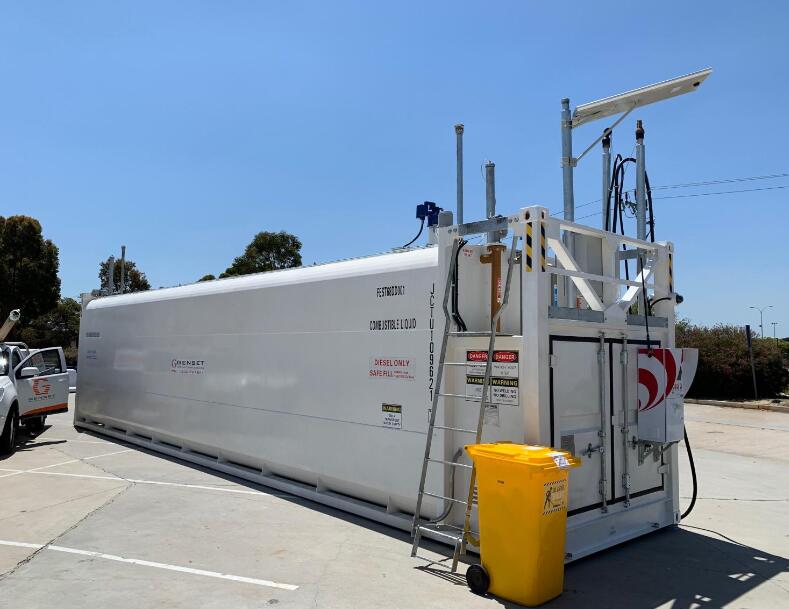

The Diesel / Adblue Self Bunded Range is a Containerised Self Bunded Tank manufactured with two compartments. One compartment is for Diesel storage, the second, fully 304 Stainless Steel compartment, is for Adblue storage.

ADBLUE COMPARTMENT

full 304 stainless steel primary tank, carbon steel secondary tank

all wetted parts are 304 stainless steel

the capacity of the Adblue compartment can be customised to suit your specific operational requirement

dedicated 304 stainless fill and suction lines.

DIESEL COMPARTMENT

carbon steel primary and secondary tanks

dedicated fill and suction lines

the capacity of the Diesel compartment can be customised to suit your specific operational

requirements

SELF BUNDED TANK (DOUBLE WALL)

Self Bunded Tank (Double Wall) Unique Rounded Rectangular Design

CONTAINER FOOTPRINT

Manufactured to standard 10ft, 20ft, 40ft and 48ft container footprint.

CSC PLATED

20FT and 40FT are CSC Plated as a Standard Shipping Container. Can be transported via Sea / Rail or Road.

SELF BUNDED TANK PROFILE

Pressed corner rectangular tank profile maximises storage footprint whilst maintaining full under

self bunded tank visibility for long term tank fuel / oil storage applications.

Designed and manufactured to UL142, ULC-S601, BS799, AS1940, AS1692, AS1657

INTEGRATED VALVING

INTECH installed 80mm (3") Anti Syphon Valve and Over fill Protection valve.

OVERFILL ALARM

Battery operated (12V) overfill alarm

FILL INLET

Supplied with 80mm (3") Fill Line including Sch 40 Pipe, ANSI 150# Flanges, Camlock Male

Fitting with Dust Cap, Fire Safe Ball Valve for isolation and Wafer Style Non Return Valve.

SUCTION OUTLET

supplied with 80mm (3") Suction Line including Sch 40 Pipe, ANSI 150# Flanges

BUNDED PUMP BAY HOUSING

Choice of Integrated or Clip On Bunded (Contained) Pump Bay Housing featuring removable

side panels to allow for simple multiple tank connection for tank farm applications. The

bunded pump bay housing is supplied with heavy duty lockable container doors with weather

proof seals.

LADDER + PLATFORM

Integrated Ladder / Platform designed to AS1657. Platform designed to allow for ladder

connection to either side of the tank providing flexibility for site positioning and operation.

Infill pieces can be added in multiple tank farm applications to provide for a complete walk

through platform system linking all tanks together. Side staircase modules are available to be

simply attached at each end of the tank farm to complete the tank top access system.

MANWAY

600mm Manway with Integrated Ladder down into the tank module (2 x manways provided on

all tanks larger than 12 000L) to assist with degassing for future tank maintenance.

PAINT SPECIFICATION

Paint Colour RAL9003 Signal White/ Tanks are sandblasted to SA2.5 Standard.

Dry film thickness no less than 120 um

LIQUIDS COMPATIBILITY

Suitable for the storage and dispensing of diesel, lubricants, gasoline (petrol) and waste oil.

MULTIPLE COMPARTMENT

multiple compartment tanks are available in all footprints to allow the storage of multiple grades / types of liquids such as various grades of lubricants or different fuels

DE-WATERING

Designed low point drain. Tank fitted with 25mm Suction Line for Water Removal.
